Характеристики

Feature: TRUCK CRANE

Showroom Location: Turkey, Saudi Arabia, Indonesia, Morocco, Kenya

Condition: New

Application: Construction

Rated Loading Capacity: 6.3 ton

Rated Lifting Moment: 1764kN.M

Max. Lifting Height: 14m

Span: 10m

Warranty: 1 Year

Hydraulic Cylinder Brand: Liyuan

Hydraulic Pump Brand: KYB

Hydraulic Valve Brand: Huade

Engine Brand: KAMA

UNIQUE SELLING POINT: High load Moment

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Marketing Type: New Product 2020

Warranty of core components: 1 Year

Core Components: Gearbox, Engine

Weight (KG): 8000 kg

After-sales Service Provided: Engineers available to service machinery overseas

Product name: telescopic boom truck mounted crane 10 ton truck with crane for sale

Color: White

Brand: SINOTRUK

Driving type: 6x4

Engine: WD615.47

Transmission: HW19710

Axle: HC16

Cab: HW76

Сертификация: ISO9001

Основная информация

Сертификация: ISO9001

Оплата и доставка Условия

Packaging Details: nude package

Supply Ability: 5000 Unit/Units per Month 10 ton truck with crane

Характер продукции

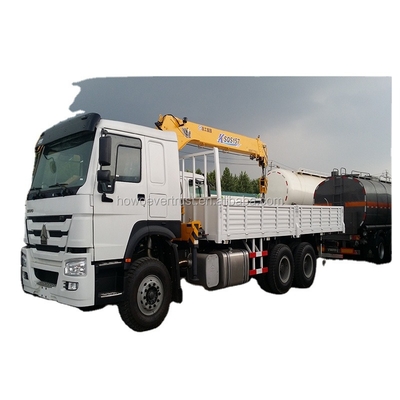

low price 371hp SINOTRUK HOWO cargo telescopic boom truck mounted crane 10 ton truck with crane for sale

Product Description

Description	HOWO 6x4 truck with crane
Vehicle Main Dimensions	(L x W x H)mm		1170024963635
	Wheel base (mm)		5825+1350
Weight in KGS	Curb Weight		15000
	GVW		25000
Max. driving speed(km/h)			102
Engine	Model		WD615.69
	Type		4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)		336
	Emission standard		Euro II
Gearbox	10 forwards& 2 reverse
Fuel Tank	300L
Clutch	Reinforced diaphragm clutch, diameter 430mm
Tire	1200R20, 10+1 spare
Brakes	Service brake: dual circuit compressed air brake
Steering Gear	power steering, hydraulic steering with power assistance
Equipment for Crane Mounted Parts
Working Platform		360°turning(left or right), H-shape legs 360°
Cargo Box		8200×2300×500mm
Equipment		Crane can be selected Hydraulic valve is universal in the world on the safe side; three point floating type to protect crossbeam of the truck; all hydraulic pressure and 360°turning; new H-shape type; high precise drawn tube;
Crane specifications		Brand : Xugong
		Max lift capacity: 6300 kg
		Max working radius 10 m
		Lifting Max. Height 12.5m

6.3 T knuckle crane

Type	SQ10SK3Q
Crane Weight	2266KG
Max Lifting Capacity	1000kg
Max Lifting Moment	15.7TM
Recommend Power	20kw
Max Oil Flow of Hydraulic System	40L/MIN
Rated Pressure Of Hydraulic System	20MPA
Oil Tank Capacity	90L
Rotation Angle	All Rotation
Installation Space	900MM

Product Details

Work Shop

Packaging & Shipping
