Характеристики

Feature: TRUCK CRANE

Showroom Location: Philippines, Peru, Indonesia, Pakistan, South Korea, Algeria, Sri Lanka, South Africa

Condition: New

Rated Loading Capacity: 10 TON

Max. Lifting Height: 19.7m

Span: 3.5m

Warranty: 1 Year

Hydraulic Cylinder Brand: ENERPAC

Hydraulic Pump Brand: Huade

Hydraulic Valve Brand: Huade

Engine Brand: ISUZU

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Marketing Type: New Product 2020

Warranty of core components: 1 Year

Core Components: Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC, Other

Weight (KG): 15000 kg

Product name: Truck Mounted Crane

Chassis brand: ISUZU

Driving type: 6*4

Crane type: Telescopic Straight Boom Crane

Control system: Hydraulic Manual Control

Color: Customer Requirements

Usage: Outdoor Construction Goods Lifting

Rotation Angle: 360 )All Rotation

Emission standard: Euro 2/3/4/5

FUEL: diesel

Основная информация

Оплата и доставка Условия

Supply Ability: 20000 Unit/Units per Year

Характер продукции

Product Description

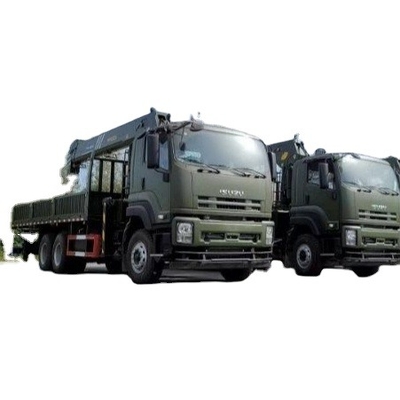

6*4 ISUZU truck mounted crane

Isuzu 6*4 on-board crane is of military quality. It is equipped with Palfinger Sany 10-ton crane, with maximum lifting height of 19.7 meters and working radius of 17.7 meters. It is highly cost-effective and well meets the needs of customers and the market

Optional crane	3 telescopic arms	4 telescopic arms
Total arms	4	5
Working radius(m)	14	17.7
Lifting Height(m)	16	19.3
crane weight(kg)	3820	3900

Specification

Truck parameters
Product name	truck mounted crane	Crane Max.lifting load	10ton
Overall Dimension	12000x2500x3500(mm)	Cargo box dimension	8300X2400X550(mm)
Drive type	6*4	Engine type/Emission standard	Diesel/Euro 2/Euro 3/Euro 4/Euro 5
Chassis brand name	Shaanxi	Crane type	telescopic straight arm crane
Transmission Type	Manual	Warranty	1 year
Lifting Height	19.7m	MOQ	1 unit
Working radius	17.7m	Price	According to your order quantity
A/C	Optional	Port	Shanghai port or any other ports of China

Chassis information
	Item	Data	Item	Data
1	Applicable crane	14/16 ton	Max Speed	88km/h
2	Chassis Brand	Dongfeng	Axles	4
3	Rated loading weight	10070/10005KG	Cab	2/3 person
4	Curb weight	20800/19900 kg	Engine Brand	Yu chai, Kang ming si
5	Dimensions	1060/120 x 250/255x 388/378 cm	Emission Standard	Euro 3/4/5
6	Cargo body dimension	850/720x 270/250/240 x65/55 cm	Horse Power	295/310hp
7	Wheelbase	18500+3200+1350cm, 2150+4400+1350 cm	Emissions	6800/6700ml
8	Drive type	8x4	Chassis Brand	Dongfeng / Shac Man / Faw / Howo /camc optional

Crane & Cargo Box Details

Core components

1. Throttle Control System
Changing the form of previous manipulation and throttle operation individually,Realization of the bilateral handle synchronous and driving throttle acceleration and deceleration automatically, due to the speed change steady,it can easily to carry out the lifting work.

2. End position automatic hook device
Maximum savings in preparation time before and after operation, to ensure that customer's vehicle could be in a driving state in the shortest time, and prevent crane damage accident caused by hoist swing to enhance the safety of driving.

3. Hoisting overwinder device
If a user is negligent or unfamiliar with the operation of lifting hooks,the hoisting overwinder device will stop hook raise in
time, to prevent the safety of personal and property caused by fracture of wire rope.

4. Slewing locking device
Slewing locking device can ensure that the lifting arm does not sway because of the centrifugal force during the driving and steering process of the vehicle,to avoid all kinds of accidents caused by swaying.

5. Torque limiter
It can select torque limit overload protection device to prevent users because of negligence or unfamiliar with the lifting
operation principle of overload operation, thereby causing the vehicle rollover and crane damage accidents.

We are specialized in the production of truck crane manufacturers, complete tonnage, the truck can be customized according to your reasonable requirements, if you need more detailed information and accurate quotation, please contact us, 24 hours service for you!

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

Hubei Shenbai Special Automobile Co., Ltd. was established in 2013 and is located in Suizhou City, Hubei Province. It is a core enterprise of Shenbai Group and a strategic partner of Sany Palfinger. The group focuses on the research, development and manufacturing of cranes. CX cranes are the self-developed brand of Shenbai Automobile Group, which ranks among the best in market share and holds a number of patents. Shenbai has advanced production equipment, mature manufacturing technology, and complete testing methods. Shenbai Automobile is a forward-looking company that focuses on technological innovation, looking for opportunities to lead the future in reforms. "Innovation drives the future" is the corporate philosophy of Shenbai Group. "Rigorous, pragmatic and progressive" is the work purpose of Shenbai Group. We focus on bringing value to customers and the public by providing high-quality products and services. We continue to explore more possibilities to expand our business scope, innovate our business methods, and improve standards and respond to new market needs. Since 2017, Shenbai truck-mounted crane trucks have adopted a series of measures to maintain a high growth rate. In 2019, its domestic market share exceeded 30%, a record high. According to the current development of various market segments of cargo hoisting vehicles, the future will continue to maintain high-speed growth for a long time. The company has formed a development trend that focuses on boom-type special vehicles, withtruck mounted crane,truck cranes, wreckers with cranes, flatbed trucks, refrigerated trucks, garbage trucks,road sweeper trucks and high-altitude work vehicles at the same time. It has an annual production capacity of 20,000 special vehicles. And now we has an annual production capacity of 20,000 special vehicles. Shenbai Autombile provides incredible durability, reliability and reliable uptime, which companies all over the world rely on every day. Shenbai Automobile is equipped with more functions and capabilities, allowing you to complete your work while having low cost, toughness and durability that have been tested on site. This is also the mystery of Shenbai Automobile's best-selling. In addition to our truck-mounted trucks and cranes, you can also find wrecker tow trucks, truck cranes, dump trucks, sprinkler trucks, garbage trucks, road sweepers, sewage suction trucks, refrigerated trucks, aerial work trucks, flatbeds Transport vehicles, etc., all of these trucks have the best warranty support in the industry, and the chassis are manufactured by famous brands such as Dongfeng, Cummins, Isuzu, Sinotruk, Shaanxi Automobile, Foton, etc. So, don't ask if you should buy a Shenbai car, but ask why you haven't bought it before. Shenbai Group is committed to recruiting, developing and cultivating first-class talents. Our workforce is large, diverse, and talented. All employees are committed to realizing our core values, doing business with customers easily, and creating a good experience for customers. Today, Shenbai has achieved business diversification in the form of an enterprise group, involved in new fields of construction engineering, road transportation, traffic hoisting, environmental protection, electric power and water conservancy, new energy, and industrial Internet. It will stand out in today's digital world and is also a part of its sustainable solutions, in order to keep moving towards its ultimate goal is to become a world-class enterprise and be able to create real value.

FAQ

1.where is your company? Our company is located in the city of Suizhou, Hubei province, China.

2.What are the advantages of your company compared with others? regional advantage: we are located in Suizhou, where is a well-known city for construction machinery. competitive price: with more than five years international trading, based on numerous feedback from our oversea customers, our price are believed to be the most favorable. fast delivery: normally, we could have an immediate delivery of regular machines for our clients.

3.How do I choose the crane I need? Our professional sales managers would recommend you the most desirable product to you according to your working condition.

4.What logistics ways you can work for delivery? We can delivery the product by various transportation means. In most cases, we will go by sea, such as South America, Middle East,Africa, etc. Apart from that, we also could delivery cranes by roads or railways, such as Russia, Mongolia, etc. 5.Are your products customized? Yes, due to different working conditions,all our trucks are customized.The more details you give us about your desirable truck the more accurate solution we can provide.

6.Which kind of information should I inquire when I buy a truck mounted crane? The details in terms of the max lifting height, lifting capacity, rated load should be necessary.Apart from that, the working condition(materials to lift；local temperature)can also be important.

7.Can you provide special lifting tools? Yes, various kinds of lifting tools are accessible such as grabs,hooks......
